Main Features

*  Specially designed for chimney, fire places, ducts inspection

*  Unique integrated all-in-one system of camera, monitor, cable reel
*  Very easy handling
*  Support and compatible with different Camera Head for different application.
*  HD 8” TFT digital monitor
*  Video Record and picture capture
*  Rechargeable high capacity Li-battery for long time use

The Whole Set Includes:

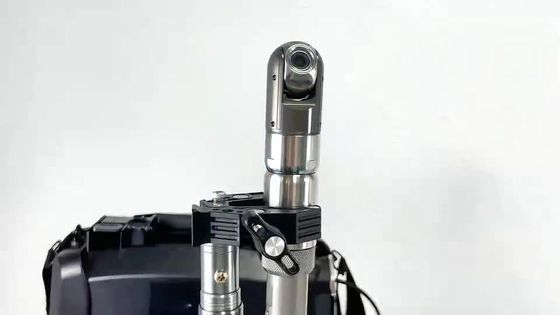

1. Camera Head:

* Camera size Φ29mm

* Stainless steel & Alumium camera housing, IP68 waterproof

* Camera lens window material sapphire glass

* 1/3 CMOS,1.3MP pixel camera

* 6 super light LEDs (adjustable)

2. Cable Reel:

* Flexible soft cable

* Cable diameter Φ5mm

* Cable length 30m option

* Metal cable reel with handle

3. Control Box

*8"HD IPS LCD Screen, 1280X720 resolution, 16:9 display model

*HD DVR SYSTEM with recording 1080P video

*DVR recording system with MP4 video format

*Waterproof LCD panel

*USB wireless Keyboard real time typewriting optional

*USB port to connect storage device ( max 256G USB flash disk)

*Built-in 6800mA rechargeable Li-ion Battery Pack

*Battery level indicator

* Sunshade is included

*AC 110V-240V 1.5A power charger

*Charging time 7 hours,working time about 6 hours

*Can fix on the cable reel, can be handhold, can hang on the neck(optional)

4. Removable Battery

5. Skid
